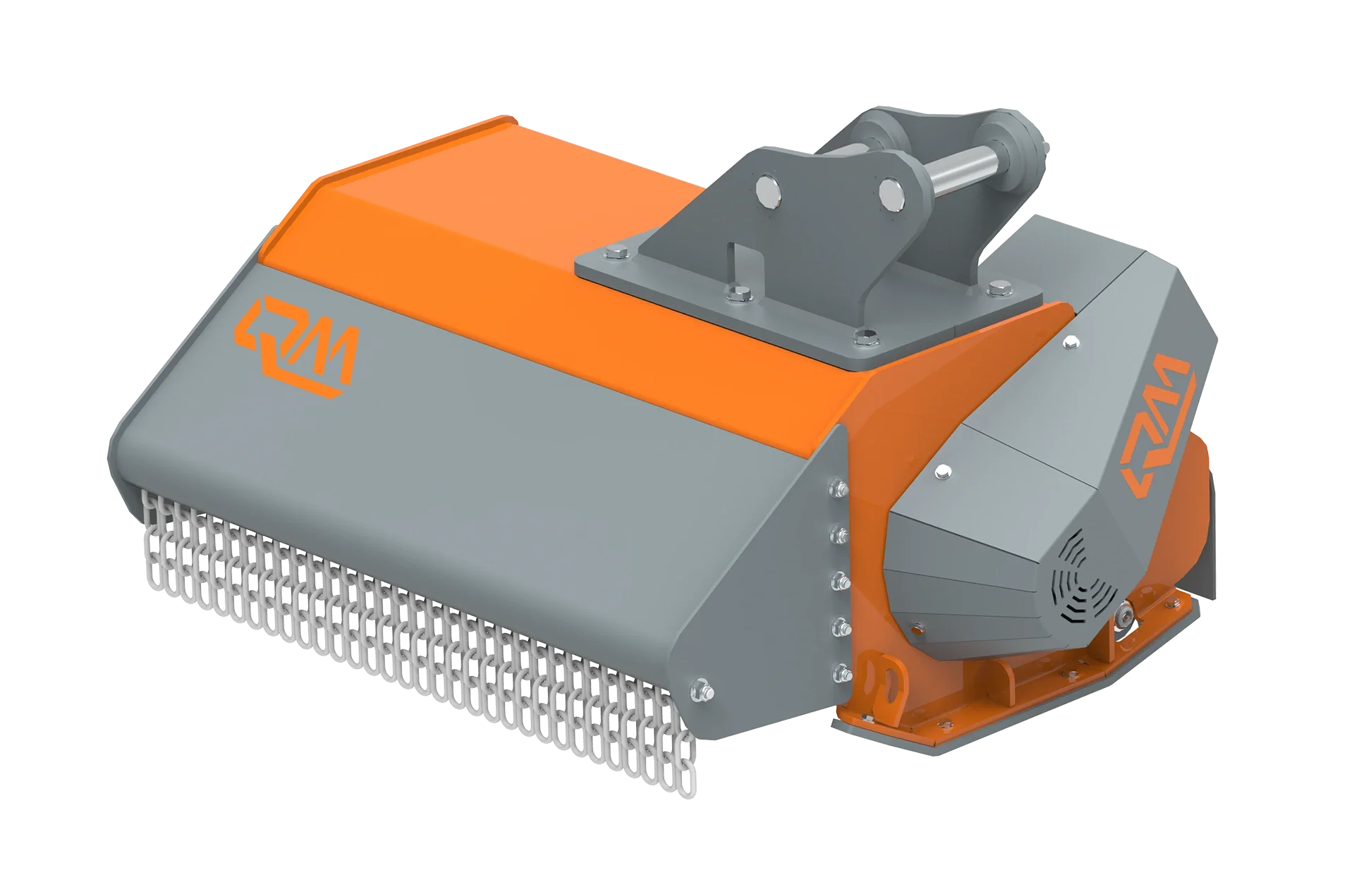

SM SERIES
Particularly robust and compact, the SM Series is the optimal high-performance flail head solution for medium-sized excavators. Built for superior versatility across construction, agricultural land reclamation, and professional maintenance of public or private green spaces, it easily manages tough clearing challenges in confined environments.
Key Product Features
Advanced Valve Block
Equipped with an integrated multi-function valve block containing flow control, shock-proof, and anti-cavitation sub-valves. Operates up to max pressure without requiring a dedicated low-pressure drainage pipe line.
Spiral-Mounted Tooling
The rotor shaft features fixed tool supports arranged in a precision helical spiral pattern, ensuring continuous material engagement, reduced vibration, and optimal shredding efficiency.
Heavy-Duty Rotor Options
Configurable with either heavy-duty mallets (forged hammers) or triple-central Y-blades to easily handle varied density vegetation, dense brushwood, and tough uncultivated undergrowth.
Rugged Structural Build
Features an internal toothed counter-bar for precise material fragmentation, an extra-tough rubberized multi-layer rear canvas shield, a heavy-duty support roller with a through-shaft, and wear-resistant replaceable side skids.
Technical Specifications
| Model | Excavator Weight | Cutting Width (D) | Overall Width (A) | Total Weight | Required Oil Flow | Max Pressure | Standard Tools |
|---|---|---|---|---|---|---|---|
| SM 90 | 3.5 – 5.0 Tons | 900 mm | 1130 mm | 215 kg | 35 – 60 L/min | 250 bar | 12 Hammers / Y-Knives |
| SM 110 | 5.0 – 6.0 Tons | 1100 mm | 1330 mm | 240 kg | 45 – 70 L/min | 250 bar | 14 Hammers / Y-Knives |
| SM 130 | 6.0 – 8.0 Tons | 1300 mm | 1530 mm | 265 kg | 50 – 80 L/min | 250 bar | 16 Hammers / Y-Knives |
Technical Layout & Demonstration

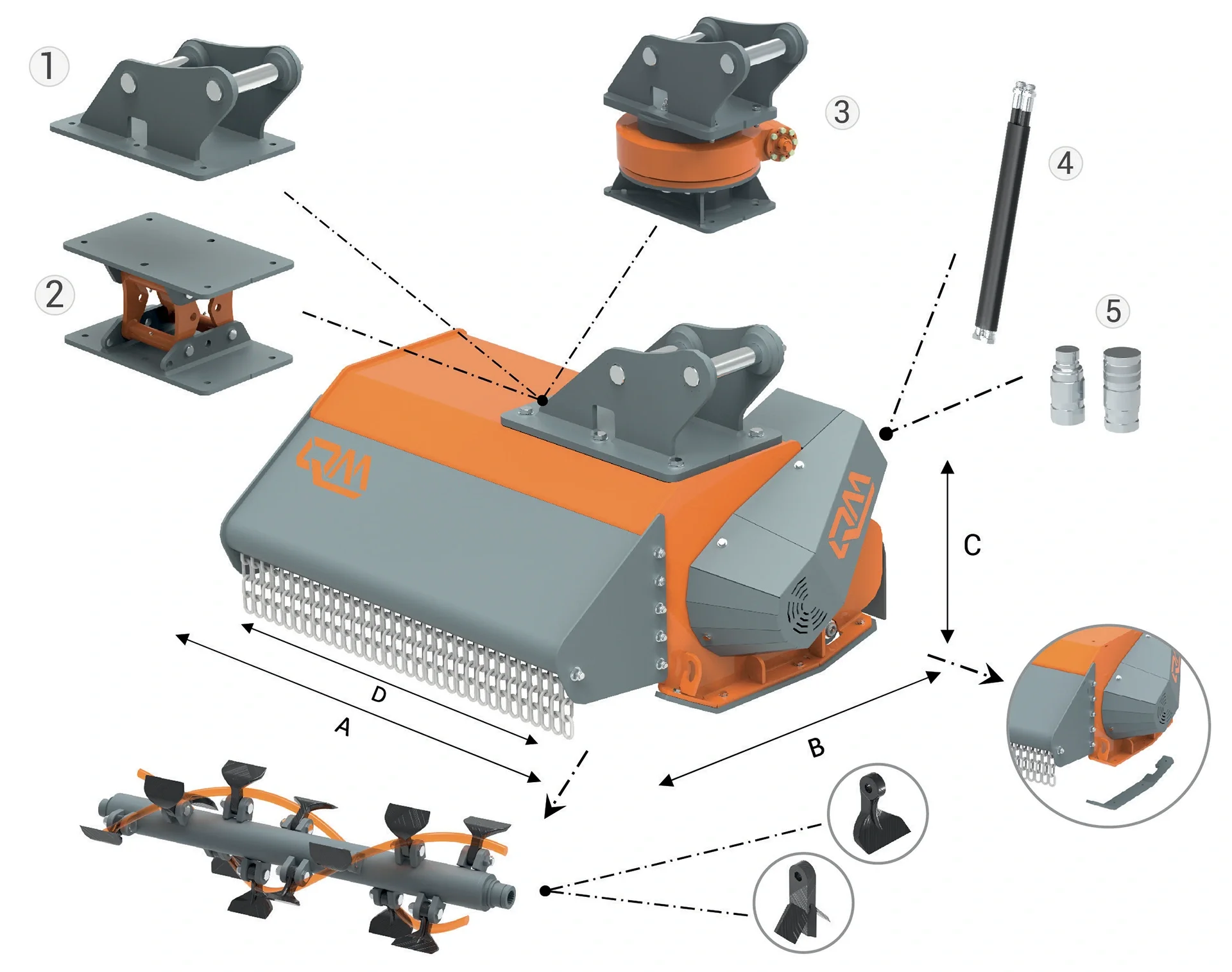

Engineering Blueprint & Dimensions

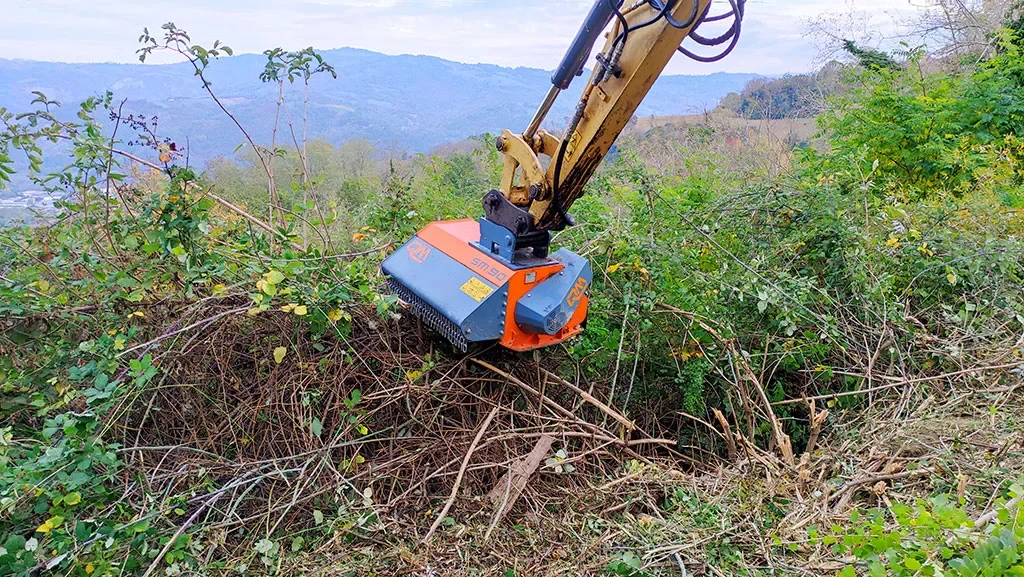

Field Operation Demonstration
Configure Your SM Series Attachment
We supply adapter plates to fit standard quick-hitches along with custom valving configurations matching your specific hydraulic auxiliary circuits. Get an expert quote for your line constraints.
