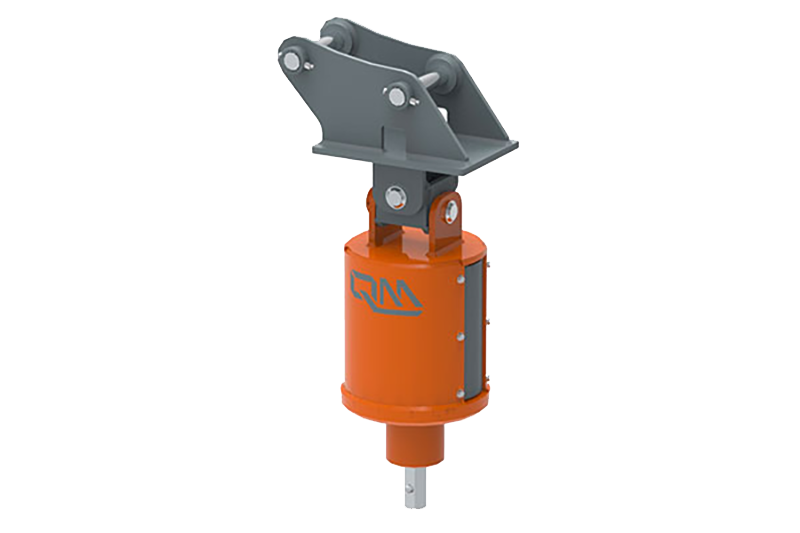

Standard Features & Specifications
- Heavy Duty Interface Support: Reinforced system mounted securely between the gearbox assembly and work tools to seamlessly withstand continuous radial forces.
- Compact Component Shielding: Sleek structural steel housing unit that encloses all critical internal assemblies to prevent damage from worksite fragments.
- Planetary Gear Reduction: High-torque transmission configuration providing exceptional digging performance under restricted auxiliary fluid flow parameters.
- Integrated Shock Relief: Standard protection valving circuit integrated to neutralize operational hydraulic spikes and prevent shock load distribution back to the carrier machine.
- Reversible Pendulum Hookup: Dual-mode configuration allows completely free pendulum movement for typical drilling tasks, or fully rigid locked-mode settings for heavy tools.
Model Configuration Grid
| Model Variant | Excavator Weight (t) | Oil Flow Range (L/min) | Max Pressure (bar) | Max Torque (Nm) | Hex Shaft Fitment (mm) | Max Drill Diameter (mm) |
|---|---|---|---|---|---|---|
| TL1 HD | 0.8 – 3.0 t | 18 – 50 L/min | 210 bar | 1,350 Nm | 50 mm | 400 mm |
| TL2 HD | 3.0 – 5.0 t | 30 – 60 L/min | 205 bar | 2,600 Nm | 50 mm | 600 mm |
| TL3 HD | 5.0 – 7.0 t | 50 – 90 L/min | 240 bar | 4,700 Nm | 50 mm | 800 mm |
| TL4 HD | 7.0 – 10.0 t | 50 – 90 L/min | 240 bar | 6,000 Nm | 70 mm | 1,000 mm |
Modular Drill Bits Program
Earth Augers — ET Series
Engineered for high-speed operation in standard, loose, or sandy soils. Features fully replaceable pilot points and sharpened ground blades to keep down-hole clearout clean and efficient.
Gravel Augers — ED Series
Purpose-built for dense earth, heavily compacted strata, and challenging backfills containing native aggregate or structural gravel pockets.
Rock Augers — ER Series
The ultimate configuration for penetrating hard geological structures and concrete pavements. Armed with modular, ultra-durable carbide tips and heavy pick teeth.
Compacting — EC Series
A specialized tooling flight design that eliminates extra soil cleanup by displacing and compacting loose earth directly into the excavation shaft wall. Ideal for post settings.

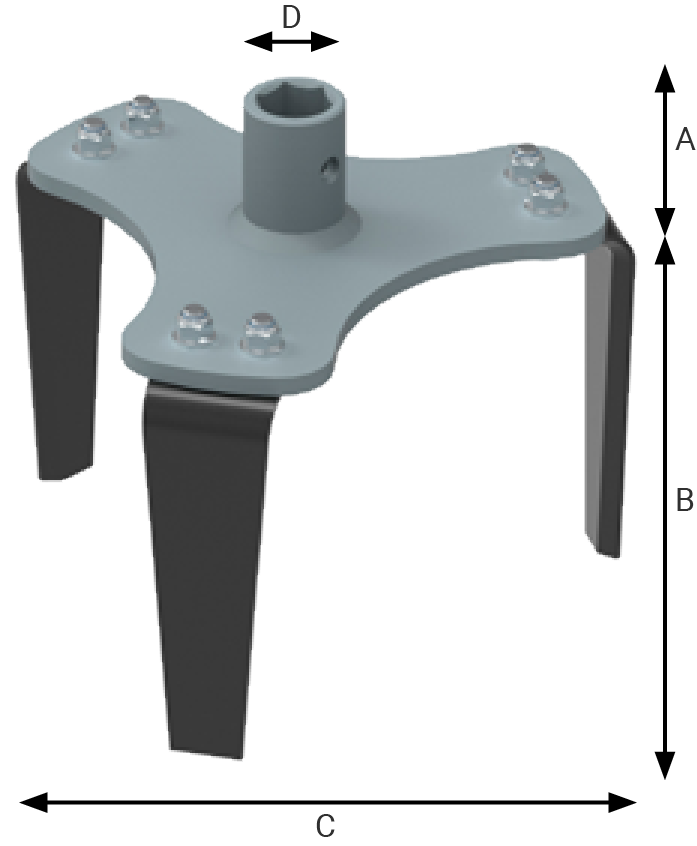

Rotary Harrow System Integration
Excavator Tillage & Soil Preparation — ER Series
The ER Rotary Harrow configuration utilizes the extreme torque output of our heavy-duty auger units to break up and refine soil beds efficiently. This dynamic pairing allows operators to control weeds, condition soil, and execute fine tilling in precision landscaping sites, vineyard rows, and nurseries.
Because tilling heavily packed beds creates sustained radial strain on your machinery, managing tool stress is paramount. The specialized integrated structure of our **TL-HD Heavy Duty Auger Drive** safely absorbs these constant ground forces, protecting the gear transmission from torque fatigue and ensuring excellent long-term operational longevity.
| Harrow Variant | Working Height A (mm) | Frame Length B (mm) | Tine Working Ø (mm) | Hex Connector C (mm) | Unit Weight (kg) |
|---|---|---|---|---|---|
| ER 30 | 115 mm | 250 mm | 300 mm | 50 mm | 11 kg |
| ER 50 | 120 mm | 300 mm | 500 mm | 50 / 70 mm | 22 kg |
Technical Layout & Demonstration

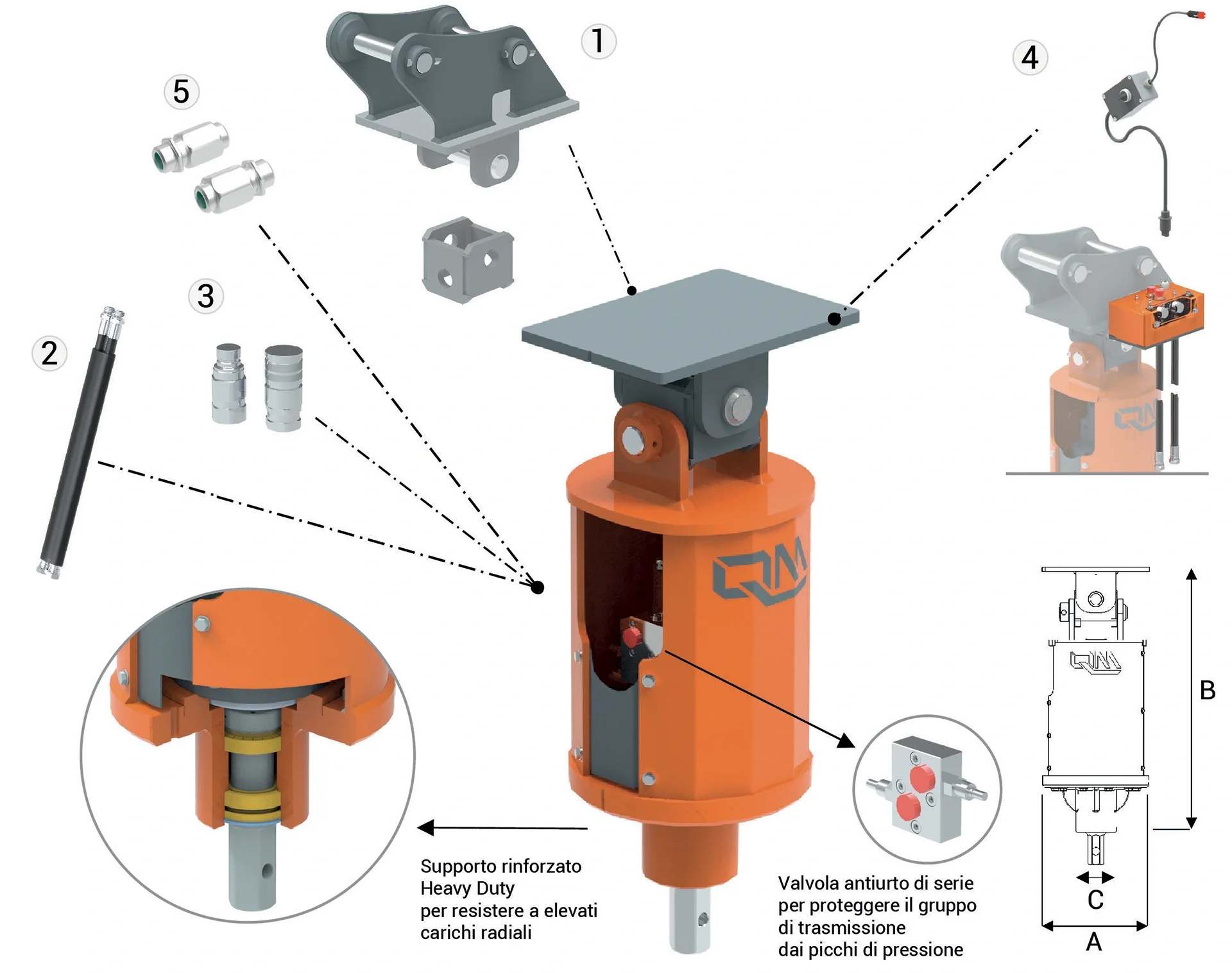

Options & Dimensions Schematic
Auger Rig In Field Operation
Rotary Harrow Soil Cultivation
Configure Your TL-HD Series Attachment
We supply adapter plates to fit standard quick-hitches along with custom valving configurations matching your specific hydraulic auxiliary circuits. Get an expert quote for your line constraints.
