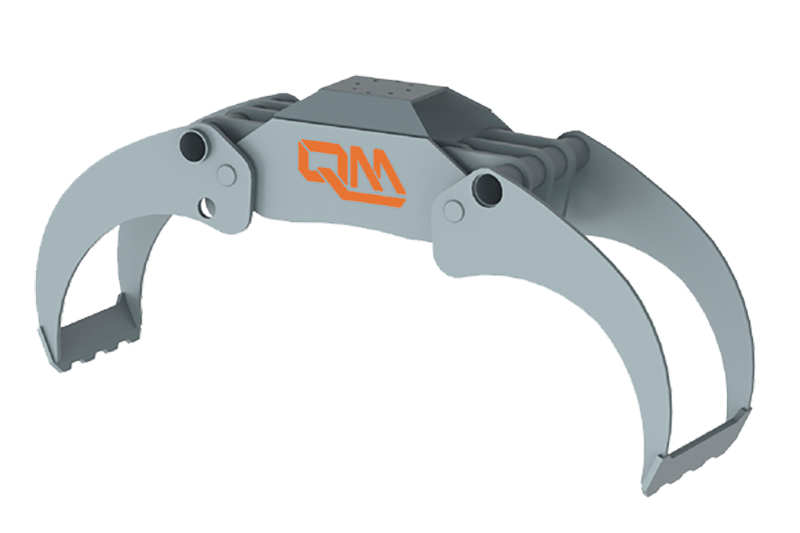

PZ SERIES
The PZ Series log grabs are professionally engineered wood grapples built for high performance across forestry management, sawmill clearing, and agricultural handling tasks. Designed with structural geometry that optimizes load retention and claw force, these attachments excel at sorting, moving, and stacking heavy logs, timber trunks, and dense brush bundles even under continuous heavy-duty cycles.
Key Product Features
Premium Build Materials
Constructed entirely using high-yield structural steel and precision reinforced plates to guarantee optimal tensile strength, impact absorption, and long lifespan in harsh outdoor environments.
Optimized Jaw Geometry
The aggressive curve profile and deep interlacing jaws are specifically modeled to close tightly on small individual timber pieces while maintaining a broad, secure hold on large log bundles.
Heavy-Duty Hydraulics
Protected hydraulic cylinders and robust high-pressure fluid lines are strategically shielded inside the body chassis to minimize any risks of external damage from falling debris.
Rotator System Readiness
Engineered to be fully compatible with both pin-type and flanged hydraulic or mechanical rotators, allowing continuous operator rotation control for rapid material handling placement.
Technical Specifications
| Model | Excavator Weight | Total Weight | Max Load Capacity | Max Pressure | Jaw Opening (C) | Min Grip Diameter |
|---|---|---|---|---|---|---|
| PZ 1000 | 1.5 – 2.0 Tons | 70 kg | 800 kg | 200 bar | 1000 mm | Ø 55 mm |
| PZ 1300 | 2.0 – 3.5 Tons | 125 kg | 1500 kg | 200 bar | 1350 mm | Ø 120 mm |
| PZ 1500 | 3.5 – 5.0 Tons | 140 kg | 2500 kg | 200 bar | 1500 mm | Ø 130 mm |
| 1400 HD | 4.0 – 7.0 Tons | 135 kg | 2000 kg | 200 bar | 1440 mm | Ø 90 mm |
| 1600 HD | 6.0 – 11.0 Tons | 205 kg | 2400 kg | 250 bar | 1620 mm | Ø 95 mm |
| 1800 HD | 8.0 – 18.0 Tons | 250 kg | 3000 kg | 250 bar | 1835 mm | Ø 110 mm |
Technical Layout & Product Configuration

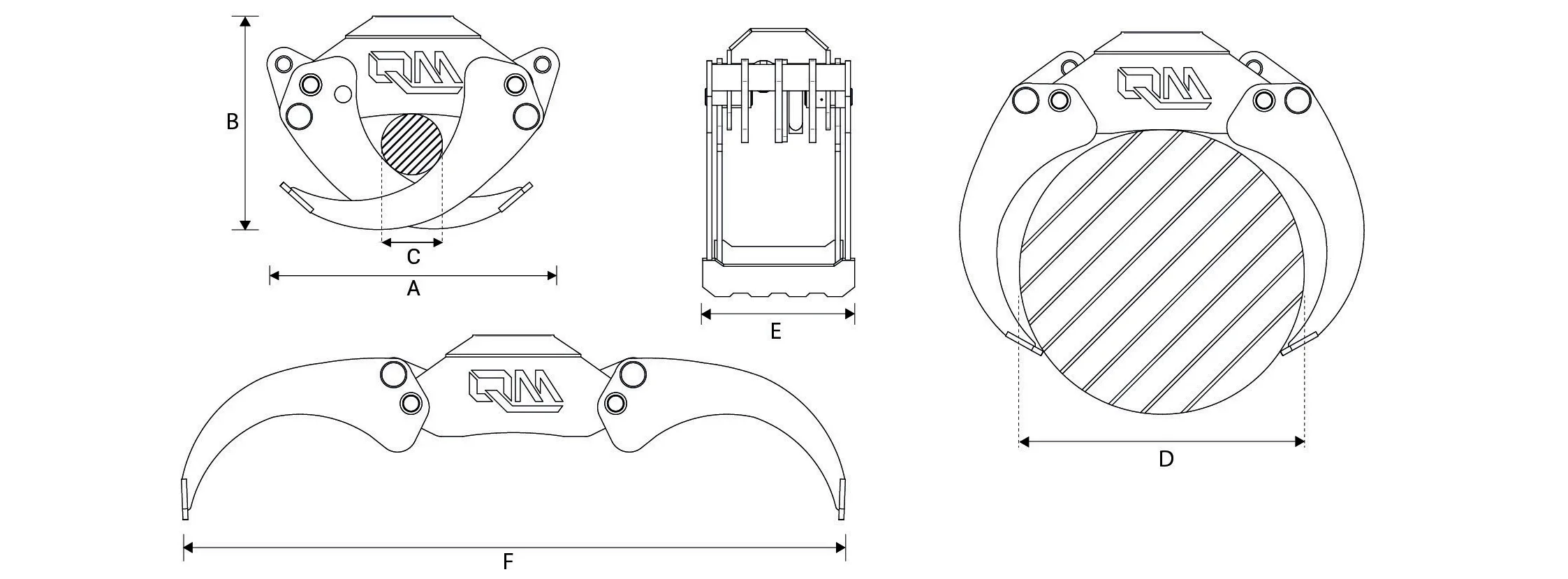

Engineering Blueprint & Dimensions

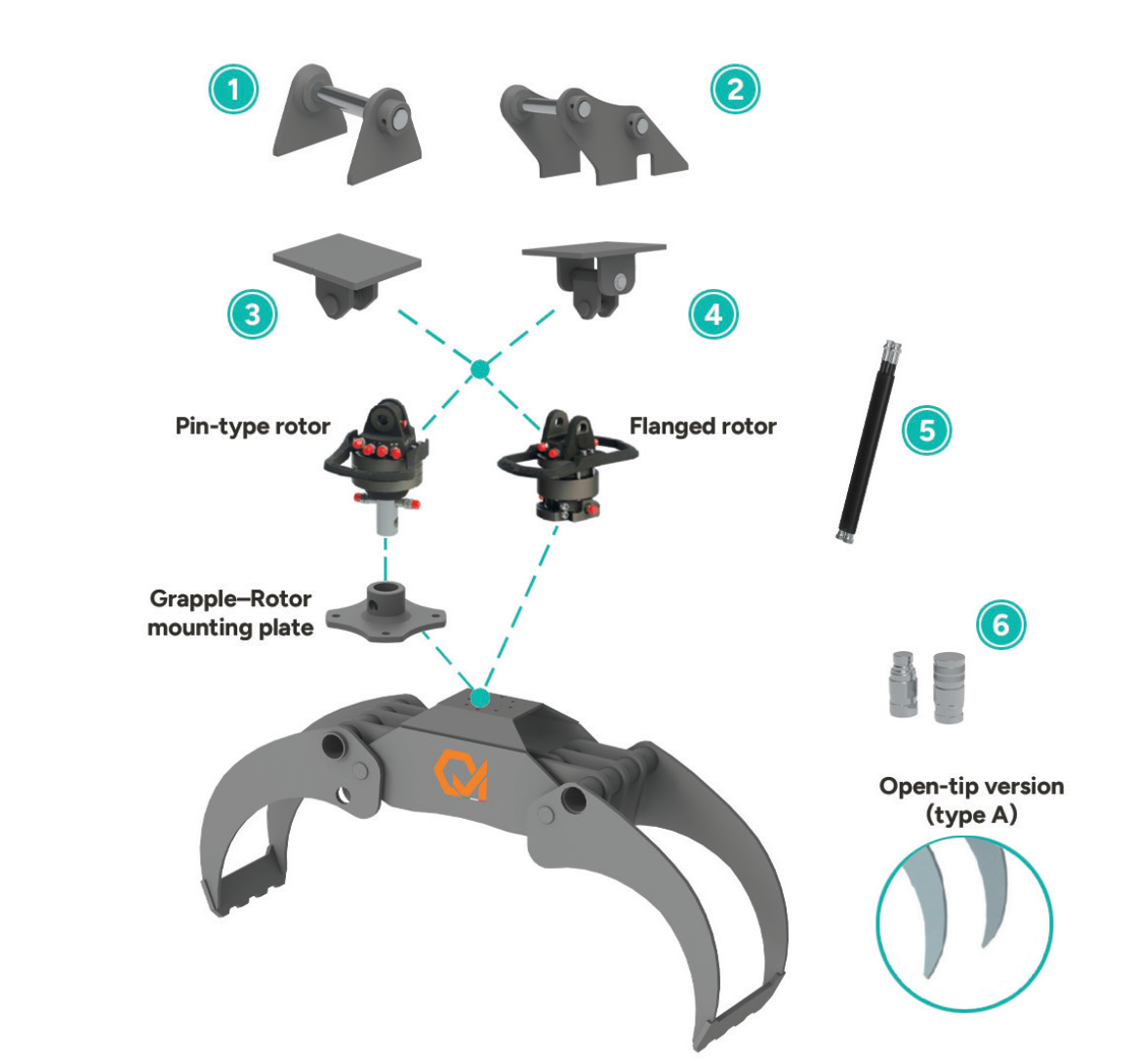

Optional Rotators & Installation Preparation
Configure your wood grapple setup to suit your application. Choose from pin-type rotators (RT10 P / RT30 P), flanged high-capacity rotators (RT30 F / RT46-5 F), or specialized single/double flange mounting interface kits.
Looking for Specific Hydraulic Setup or Custom Mounting?
Every QM log grab attachment is proudly crafted in the EU. We engineer customizable pin or coupler connection plates to guarantee an effortless mechanical and hydraulic interface with your excavator.
Request Quote & Layout Info
