SL SERIES
The SL Series shredding heads feature a compact and robust design optimized for mini-excavators working efficiently in confined spaces. Built to perform demanding reclamation tasks on grass, brushwood, and small shrubs, this versatile flail mower delivers highly reliable performance for both estate maintenance and professional landscaping applications.
Standard Features & Specifications
Reinforced Build
Features a double-cavity bottom shell structure reinforced directly at the connection point with protective front chains for impact resistance.
Premium Bearings
Equipped with heavy-duty spherical roller bearings paired with a special labyrinth sealing layout to isolate and protect against impurities.
Integrated Control Valve
Configured with a blockage flow, anti-cavitation, and max-pressure regulating valve layout that completely eliminates the need for a drainage line.
Spiral Tool Alignment
The cutting shaft features fixed tool supports laid out in a spiral configuration to deliver fine shredding, clean cuts, and balanced power loading.
Model Configuration Grid
| Model Variant | Excavator Size (tons) | Useful Cut (mm) | Machine Weight (kg) | Blades / Hammers | Flow Rate (L/min) | Max Pressure (bar) |
|---|---|---|---|---|---|---|
| SL 50 | 0.8 – 1.8 tons | 500 mm | 90 kg | 10 pcs | 12 – 24 L/min | 250 bar |
| SL 70 | 1.8 – 3.0 tons | 700 mm | 105 kg | 14 pcs | 18 – 35 L/min | 250 bar |
| SL 90 | 3.0 – 4.0 tons | 900 mm | 120 kg | 18 pcs | 25 – 40 L/min | 250 bar |

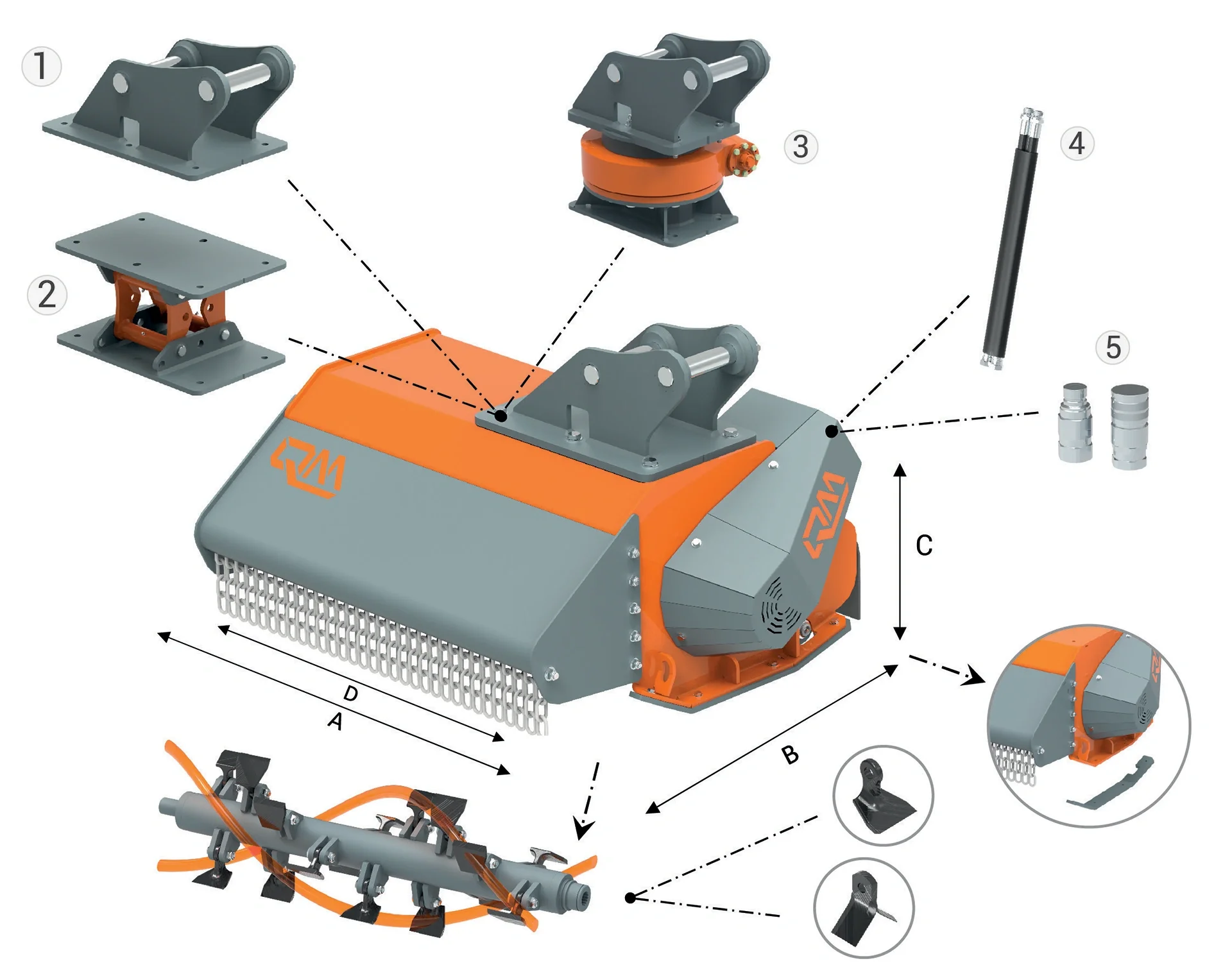

Technical Layout & Demonstration
Options

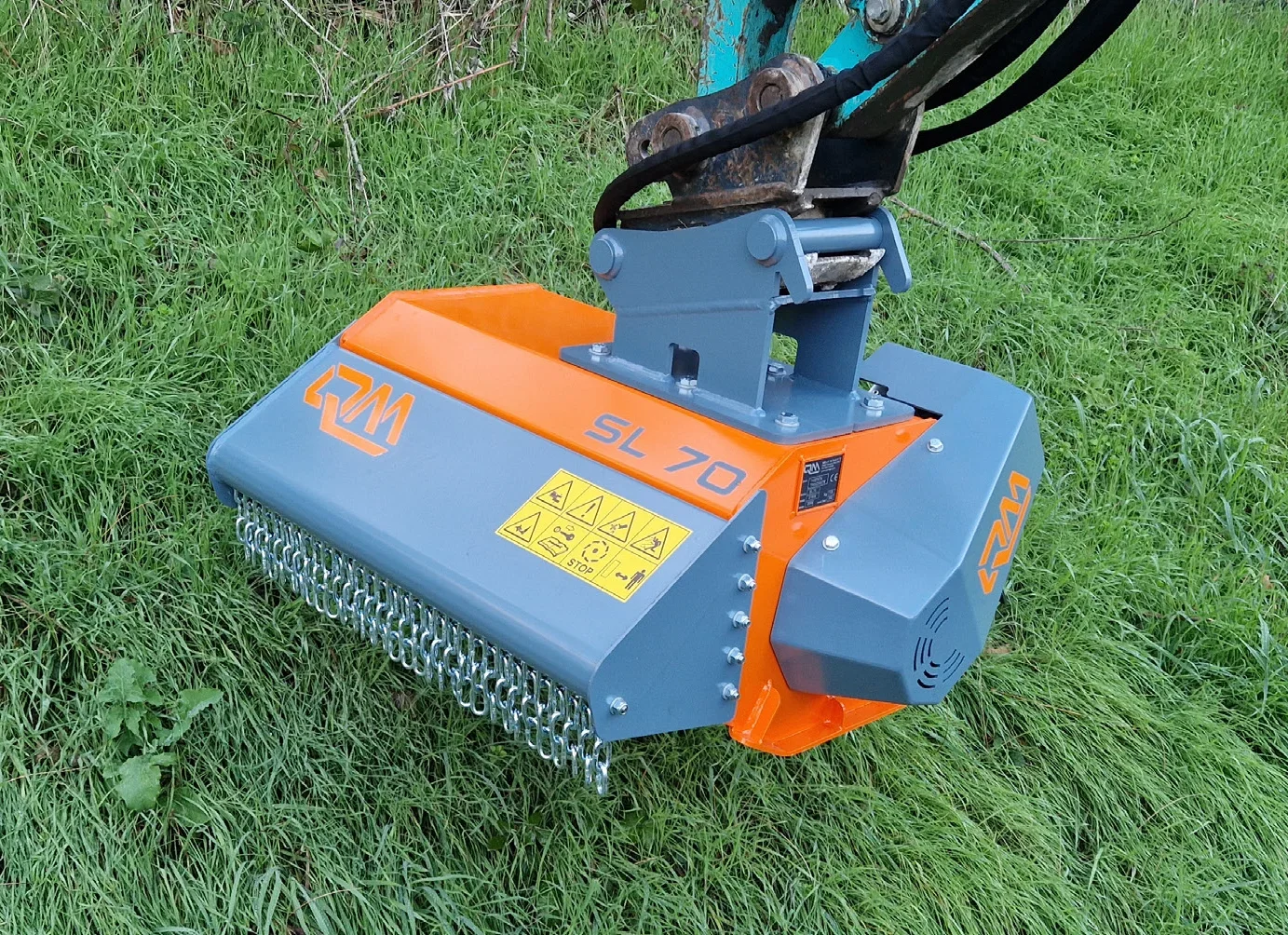

Field Operation Demonstration
Configure Your SL Series Attachment
We supply adapter plates to fit standard quick-hitches along with custom valving configurations matching your specific hydraulic auxiliary circuits. Get an expert quote for your line constraints.
