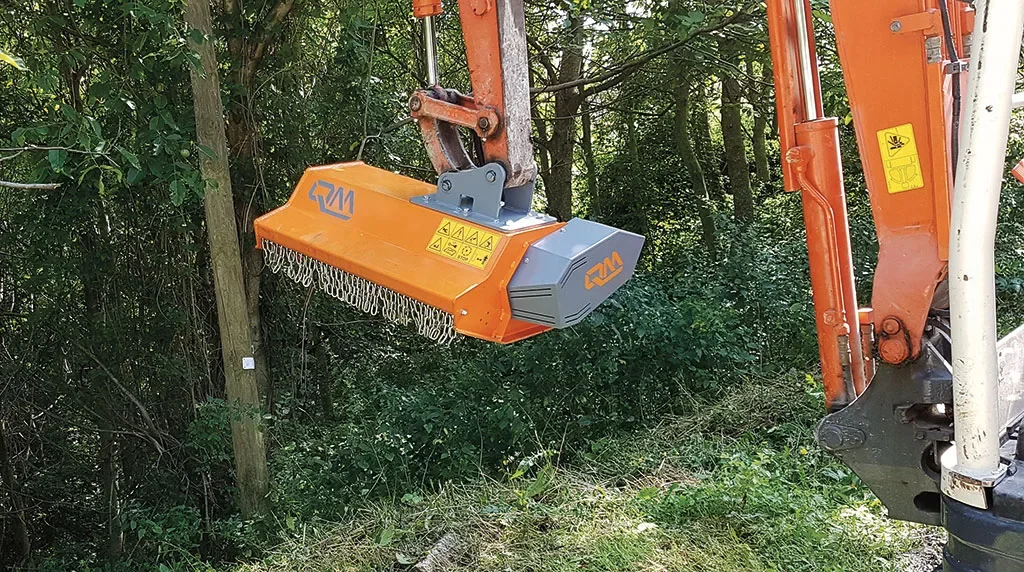

SE SERIES
The SE Series features a symmetrical, dual-sided structural design specifically optimized for compact carrier machinery. Engineered for versatility, this professional-grade attachment allows high-efficiency directional mulching on both sides across every pass. Ideal for vegetation control, ditch clearance work, and precision roadside maintenance.
Standard Features & Specifications
Symmetrical Frame
Symmetrical structural design allows highly efficient material reduction working forward or backward without altering position.
Dual Edge Clearance
Identical inlet and outlet openings optimize cutting speed and process vegetation seamlessly from both operating sides.
Direct Drive Motor
High-torque hydraulic motor configured directly to the main shaft assembly for maximized power transfer efficiency.
Heavy-Duty Flails
Outfitted with durable forged steel hammers or structural tool teeth to shred scrub up to 4 cm with complete consistency.
Model Configuration Grid
| Model Variant | Cutting Width (mm) | Machine Weight (kg) | Max Cutting (cm) | Flow Rate (L/min) | Pressure (bar) |
|---|---|---|---|---|---|
| SE 60 | 600 mm | 115 kg | 4 cm | 20 – 35 L/min | 180 – 210 bar |
| SE 80 | 800 mm | 130 kg | 4 cm | 25 – 40 L/min | 180 – 210 bar |
| SE 100 | 1000 mm | 150 kg | 4 cm | 35 – 50 L/min | 180 – 210 bar |

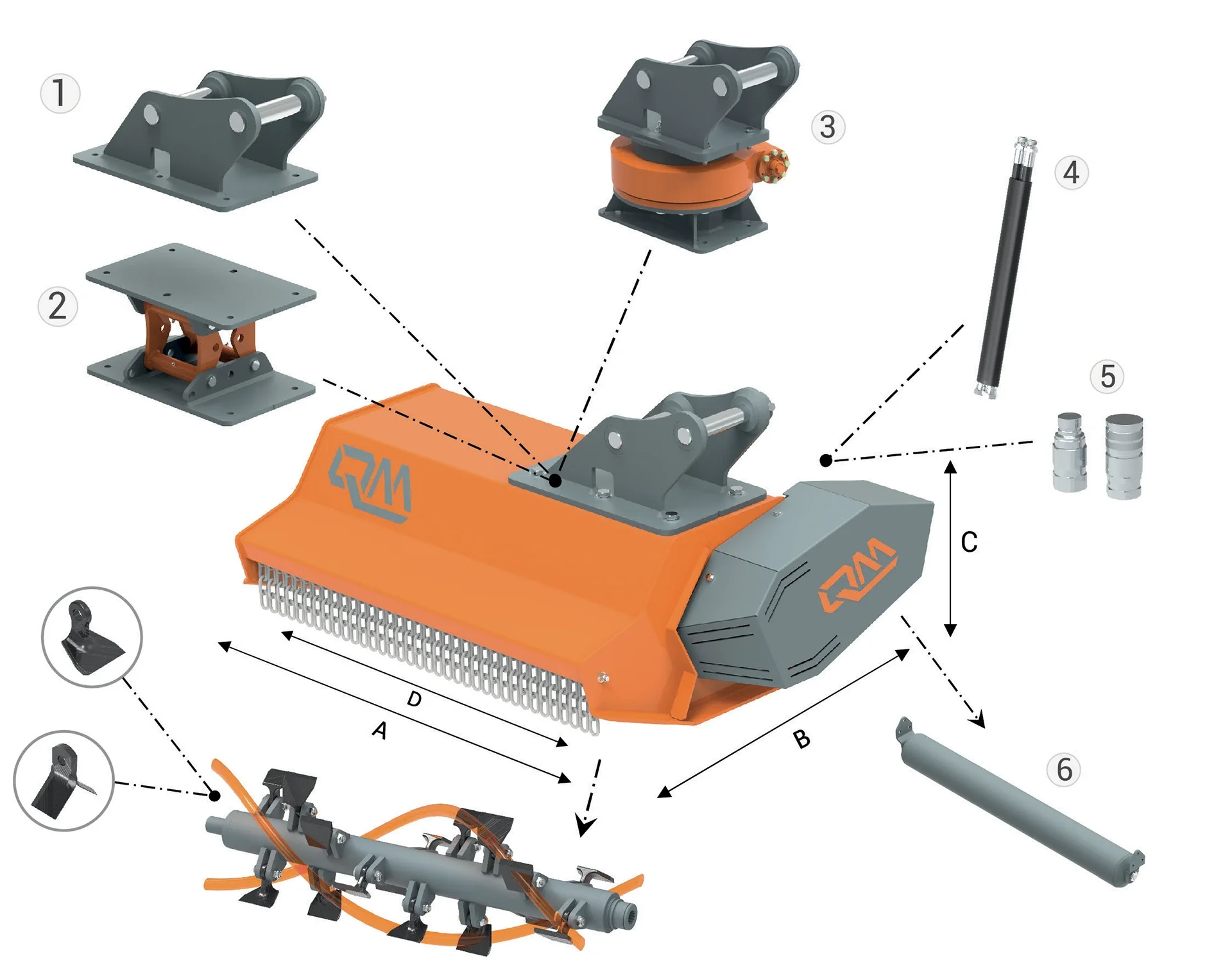

Technical Layout & Demonstration
Options
Field Operation Demonstration
Configure Your SE Series Attachment
We supply adapter plates to fit standard quick-hitches along with custom valving configurations matching your specific hydraulic auxiliary circuits. Get an expert quote for your line constraints.
