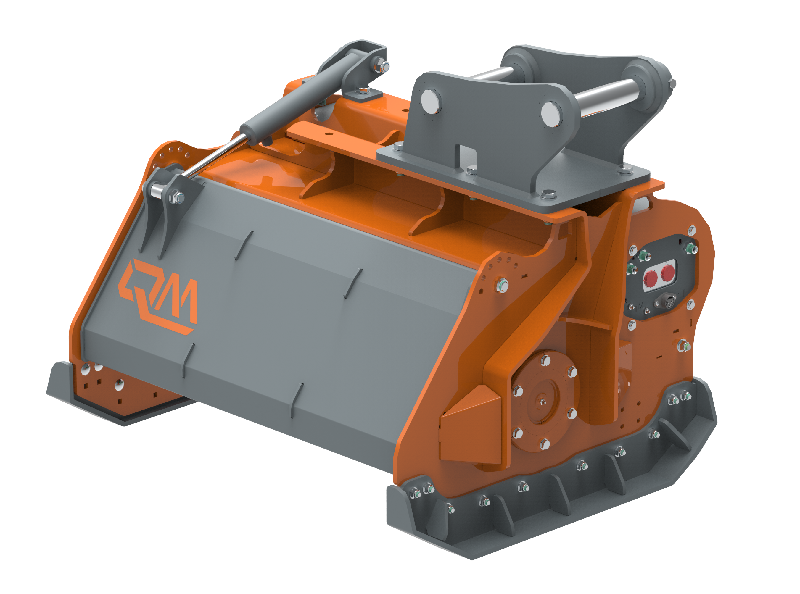

FM SERIES

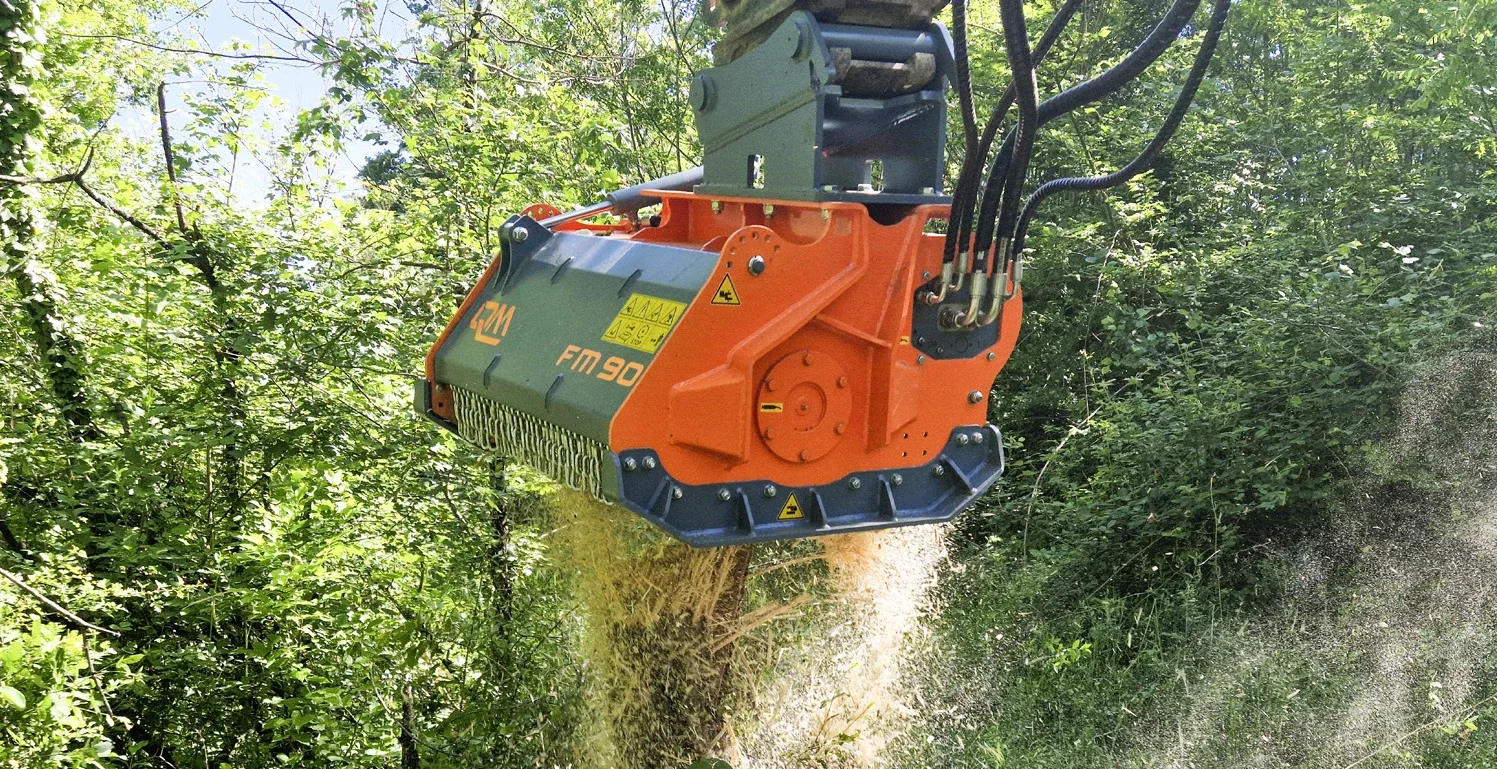

The FM model flail head is designed to offer an ideal balance of compactness, robustness, and performance, ensuring a long service life even under intense working conditions. The FM series stands out for its structural versatility in a wide range of applications, from forestry work and deep clearing of wooded areas to grounds maintenance.
Standard Features & Capabilities
Protected Hydraulics
Engine and hydraulic components are completely enclosed inside the body frame, shielded from impacts and flying external debris.
Regulating Valve System
Equipped with a blockage flow, anti-cavitation, and max-pressure regulating valve, eliminating the need for a dedicated drainage pipe.
Advanced Labyrinth Seals
Spherical roller bearings are heavily protected from dirt and impurities via a specialized structural labyrinth seal layout.
Configurable Rotors
Interchangeable system supporting retractable mallets (MS), fixed carbide shear teeth (CP), or fixed pointed carbide teeth (ST) for extreme uses.
Model Configuration Grid
| Model Variant | Excavator Weight (t) | Oil Flow (L/min) | Max Pressure (bar) | Cutting Width (mm) | MS Rotor Weight (kg) | CP/ST Weight (kg) |
|---|---|---|---|---|---|---|
| FM 70 | 4.0 – 8.0 | 45 – 90 | 250 | 700 | 374 | 406 |
| FM 90 | 5.0 – 10.0 | 50 – 110 | 250 | 900 | 428 | 460 |
| FM 110 | 6.0 – 12.0 | 60 – 120 | 250 | 1100 | 484 | 520 |
| FM 130 | 8.0 – 18.0 | 80 – 140 | 250 | 1300 | 538 | 575 |
Technical Layout & Product Media

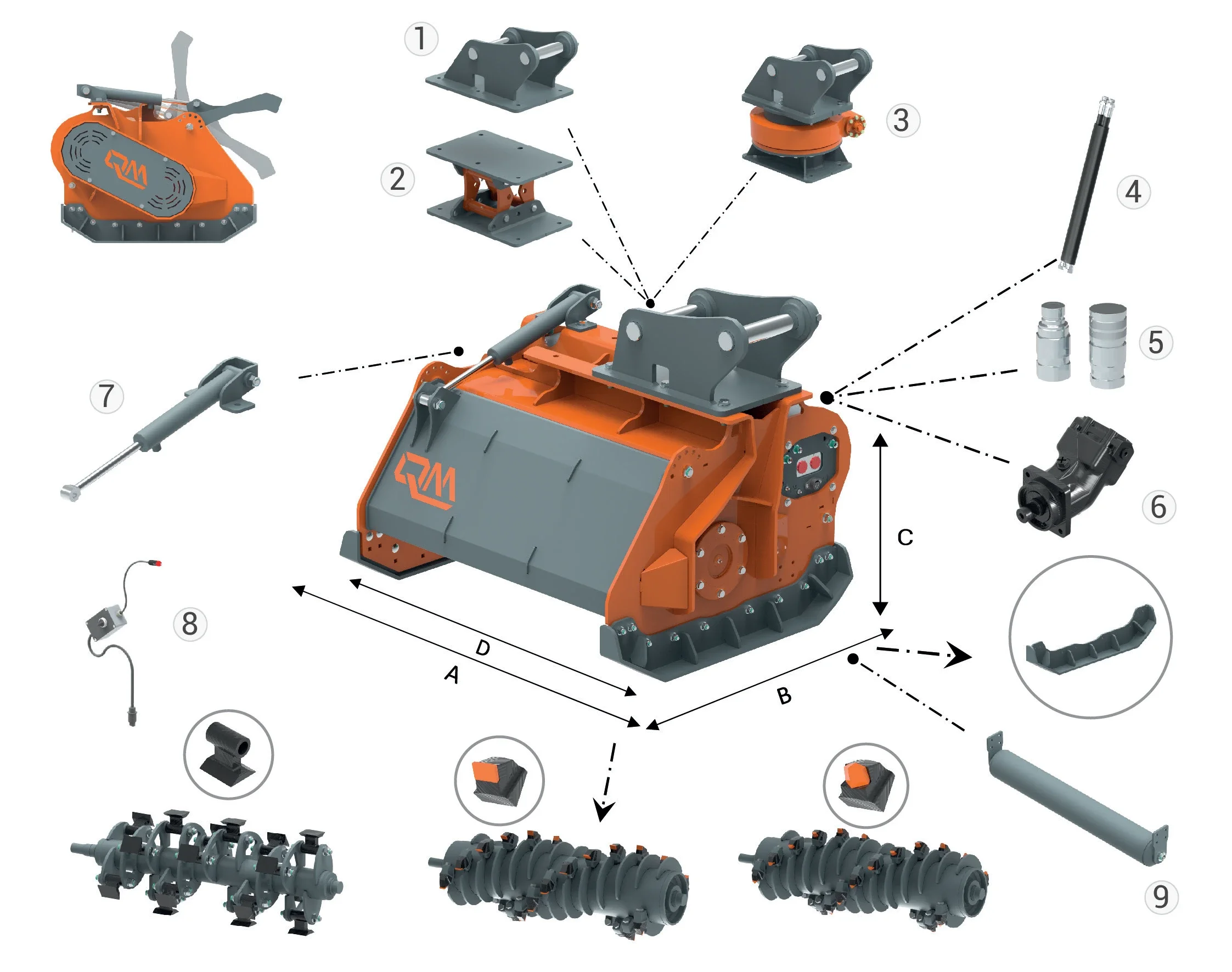

Engineering Blueprint Schematic
Overview
Configure Your FM Series Attachment
We supply adapter plates to fit standard quick-hitches along with custom valving configurations matching your specific hydraulic auxiliary circuits. Get an expert quote for your line constraints.
